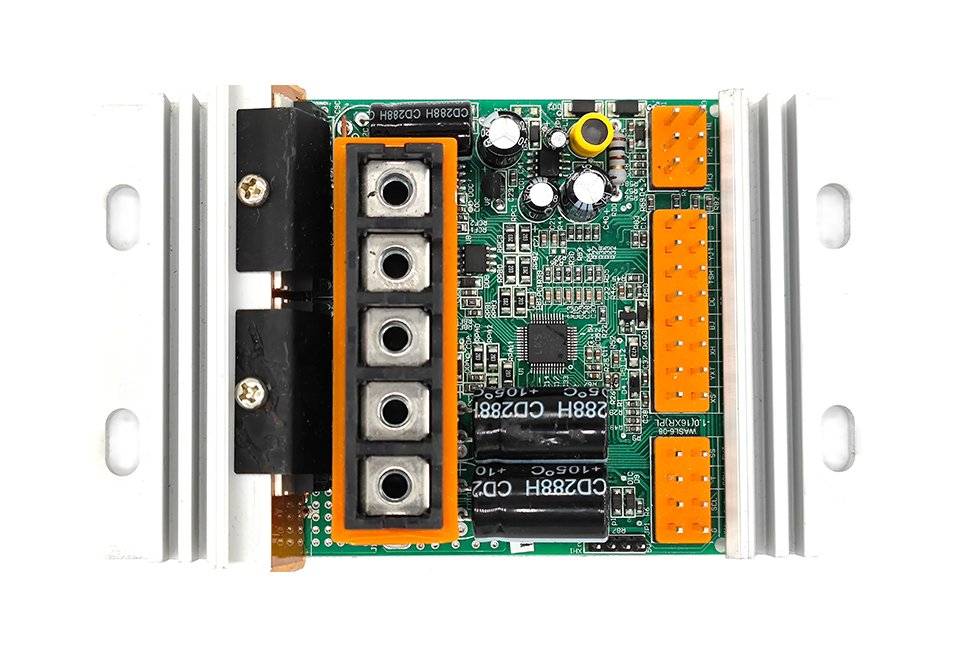

LKS06系列
LKS06系列MCU是凌鸥创芯针对电机驱动市场，推出的电机专用运动控制系列芯片。集成仪表级全差分可编程增益放大器+差分ADC，不需要电压偏置就可以处理正负信号；集成同步双采样3Msps 12BIT高速ADC，集成全温度范围千分之五电压基准源；集成96MHz 32BIT MCU，除法，开方运算100ns内完成；工作温度范围-40~105℃，内部RC全温度范围时钟偏差±1%以内。芯片引脚通过6KV人体模型引脚接触放电，通过15KV非触式空气静电放电测试。
| Device | Freq(MHz) | Flash(kB) | RAM(kB) | ADC Ch. | DAC | Comp | Comp Ch. | OPA | HaLL | SPI | IIC | UART | CAN | QEP | Gate driver | Gate driver current(A) | Gate driver supply (V) | Floating voltage(V) | Others | Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LKS32MC061C6T8 | 96 | 32 | 4 | 12 | 12BITx1 | 2 | 8 | 4 | 3-way | 1 | 1 | 2 | TQFP48 | |||||||
| LKS32MC062K6Q8 | 96 | 32 | 4 | 12 | 12BITx1 | 2 | 6 | 3 | 3-way | 1 | 1 | 2 | QFN32 | |||||||
| LKS32MC066N6Q8 | 96 | 32 | 4 | 12 | 12BITx1 | 2 | 7 | 3 | 3-way | 1 | 1 | 2 | +1.2/1.5 | 10-25 | 200 | QFN52L |
下载资源
Datasheet
| Download | Description | Version | Update |
|---|---|---|---|
| LKS32MC061_DS | LKS32MC061数据手册 | 1.3 | 2023.03.28 |
| LKS32MC062_DS | LKS32MC062数据手册 | 1.3 | 2023.03.28 |
| LKS32MC066_DS | LKS32MC066数据手册 | 1.5 | 2023.03.28 |
User Manual
| Download | Description | Version | Update |
|---|---|---|---|
| LKS32MC06x_UM | LKS32MC06x用户手册 | 1.23 | 2023.03.28 |
Device Pack
| Download | Description | Version | Update |
|---|---|---|---|
| LKS32MC06x_Keil5 | LKS32MC06x Keil5 device files | 1.08 | 2025.02.07 |
| LKS32_Keil4 | LKS32 Keil4 device setup | 1.79 | 2024.01.12 |
Demo Board
| Download | Description | Version | Update |
|---|---|---|---|
| LKS_EVB_MCU06x | Single MCU demo board for LKS32MC06x | 5.0 | 2023.03.28 |
| LKS_EVB_MVPOW6N | Mother board for 6N MCU daughter board | 4.0 | 2024.12.12 |
| LKS_EVB_MVPOWPRE | Mother board with gate-drivers for single MCU daughter board | 5.0 | 2023.10.18 |
| LKS_EVB_HVPOWPRE | Mother board with HV gate drivers | 2.0 | 2023.03.28 |
| LKS_EVB_MVPOW3P3N | Mother board for 3P3N MCU daughter board | 2.0 | 2023.03.28 |
