LKS03系列
LKS03系列MCU是凌鸥创芯针对电机驱动市场，推出的紧凑型电机运动控制系列芯片。集成仪表级全差分可编程增益放大器+差分ADC，不需要电压偏置就可以处理正负信号；集成1Msps 12bit ADC，集成全温度范围千分之五电压基准源；集成48MHz 32bit CPU，硬件除法640ns，开方运算320ns内完成；同时配备DMA。工作温度范围-40~105℃，内部RC全温度范围时钟偏差±1%以内。芯片引脚通过6KV人体模型引脚接触放电，通过15KV非触式空气静电放电测试。
| Device | Freq(MHz) | Flash(kB) | RAM(kB) | ADC Ch. | DAC | Comp | Comp Ch. | OPA | HaLL | SPI | IIC | UART | CAN | QEP | Gate driver | Gate driver current(A) | Gate driver supply(V) | Floating voltage(V) | Others | Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LKS32MC031KLC6T8C | 48 | 32 | 4 | 9 | 8BITx1 | 2 | 8 | 3 | 3Phase | 1 | 1 | 1 | 6N | +0.2/-0.35 | 13~20 | 600 | 5V LDO | LQFP48L | ||
| LKS32MC033H6P8C | 48 | 32 | 4 | 7 | 8BITx1 | 2 | 5 | 2 | 3Phase | 1 | 1 | 1 | TSSOP20L | |||||||
| LKS32MC033H6Q8C | 48 | 32 | 4 | 7 | 8BITx1 | 2 | 5 | 1 | 3Phase | 1 | 1 | 1 | QFN20L | |||||||
| LKS32MC034DF6Q8C | 48 | 32 | 4 | 10 | 8BITx1 | 2 | 8 | 2 | 3Phase | 1 | 1 | 1 | 6N | +1.0/-1.0 | 7~20 | 200 | QFN40L | |||
| LKS32MC034DOF6Q8C | 48 | 32 | 4 | 10 | 8BITx1 | 2 | 8 | 2 | 3Phase | 1 | 1 | 1 | 6N | +1.0/-1.0 | 7~20 | 200 | 5V LDO | QFN40L | ||
| LKS32MC034SF6Q8C | 48 | 32 | 4 | 10 | 8BITx1 | 2 | 8 | 2 | 3Phase | 1 | 1 | 1 | 6N | +1.0/-1.2 | 4.5~20 | 200 | 5V LDO | QFN40L | ||
| LKS32MC034S2F6Q8C | 48 | 32 | 4 | 10 | 8BITx1 | 2 | 8 | 2 | 3Phase | 1 | 1 | 1 | 6N | +1.0/-1.0 | 7~20 | 200 | 5V LDO | QFN40L | ||
| LKS32MC034FLF6Q8C | 48 | 32 | 4 | 10 | 8BITx1 | 2 | 8 | 2 | 3Phase | 1 | 1 | 1 | 6N | +1.0/-1.0 | 4.5~20 | 200 | 5V LDO | QFN40L | ||
| LKS32MC035DL6S8C | 48 | 32 | 4 | 5 | 8BITx1 | 2 | 4 | 1 | 3Phase | 1 | 1 | 1 | 3P3N | +0.05/-0.3 | 7.5~28 | 5V LDO | SOP16L | |||
| LKS32MC035EL6S8C | 48 | 32 | 4 | 5 | 8BITx1 | 2 | 4 | 1 | 3Phase | 1 | 1 | 1 | 3P3N | +0.05/-0.3 | 5.6~28 | 5V LDO | SOP16L | |||
| LKS32MC037M6S8C | 48 | 32 | 4 | 10 | 8BITx1 | 2 | 8 | 2 | 3Phase | 1 | 1 | 1 | SSOP24L | |||||||
| LKS32MC037EM6S8C | 48 | 32 | 4 | 9 | 8BITx1 | 2 | 7 | 2 | 3Phase | 1 | 1 | 1 | 3P3N | +0.05/-0.3 | 7.5~28 | 5V LDO | SSOP24L | |||
| LKS32MC037FM6S8C | 48 | 32 | 4 | 9 | 8BITx1 | 2 | 7 | 2 | 3Phase | 1 | 1 | 1 | 3P3N | +0.05/-0.3 | 5.6~28 | 5V LDO | SSOP24L | |||
| LKS32MC037LM6S8C | 48 | 32 | 4 | 9 | 8BITx1 | 2 | 8 | 2 | 3Phase | 1 | 1 | 1 | 5V LDO | SSOP24L | ||||||
| LKS32MC037QM6Q8C | 48 | 32 | 4 | 9 | 8BITx1 | 2 | 7 | 2 | 3Phase | 1 | 1 | 1 | 3P3N | +0.05/-0.3 | 7.5~28 | 5V LDO | QFN24L | |||
| LKS32MC038Y6P8C | 48 | 32 | 4 | 9 | 8BITx1 | 2 | 8 | 2 | 3Phase | 1 | 1 | 1 | TSSOP28L | |||||||
| LKS32MC038LY6P8C | 48 | 32 | 4 | 10 | 8BITx1 | 2 | 8 | 2 | 3Phase | 1 | 1 | 1 | 5V LDO | TSSOP28L | ||||||
| LKS32MC038LY6Q8C | 48 | 32 | 4 | 10 | 8BITx1 | 2 | 8 | 2 | 3Phase | 1 | 1 | 1 | 5V LDO | QFN28L | ||||||
| LKS32MC038KU6Q8C | 48 | 32 | 4 | 9 | 8BITx1 | 2 | 8 | 2 | 3Phase | 1 | 1 | 1 | 6N | +0.45/-1 | 10~20 | 600 | 5V LDO | QFN43L | ||
| LKS32MC039DK6Q8C | 48 | 32 | 4 | 9 | 8BITx1 | 2 | 8 | 2 | 3Phase | 1 | 1 | 1 | 3P3N | +0.05/-0.3 | 7.5~28 | 5V LDO | QFN32L | |||
| LKS32MC039PL5K6Q8C | 48 | 32 | 4 | 9 | 8BITx1 | 2 | 8 | 2 | 3Phase | 1 | 1 | 1 | 5V LDO | QFN32L | ||||||
| LKS32MC039PL3K6Q8C | 48 | 32 | 4 | 9 | 8BITx1 | 2 | 8 | 2 | 3Phase | 1 | 1 | 1 | 3.3V LDO | QFN32L |
下载资源
Datasheet
| Download | Description | Version | Update |
|---|---|---|---|
| LKS32MC03x_6N_DS | LKS32MC03x集成6N预驱数据手册 | 2.66 | 2024.04.17 |
| LKS32MC03x_DS | LKS32MC03x数据手册 | 2.51 | 2024.04.11 |
| LKS32MC03x_3P3N_DS | LKS32MC03x集成3P3N预驱数据手册 | 2.68 | 2024.04.11 |
| LKS32MC03x_ER | LKS32MC03x勘误表 | 1.12 | 2023.09.19 |
User Manual
| Download | Description | Version | Update |
|---|---|---|---|
| LKS32MC03x_UM | LKS32MC03x用户手册 | 1.53 | 2024.04.04 |
Device Pack
| Download | Description | Version | Update |
|---|---|---|---|
| LKS32_Keil4 | LKS32 Keil4 device setup | 1.79 | 2024.01.12 |
| LKS32MC03x_Keil5 | LKS32MC03x Keil5 device files | 1.15 | 2023.12.23 |
Demo Board
| Download | Description | Version | Update |
|---|---|---|---|
| LKS_EVB_MCU033 | Single MCU demo board for LKS_EVB_MCU033 | 2.0 | 2023.03.28 |
| LKS_EVB_MCU033QFN | Single MCU demo board for LKS_EVB_033QFN，033QFN封装Demo | 2.1 | 2023.03.28 |
| LKS_EVB_MCU034D | Single MCU demo board for LKS_EVB_MCU034D | 2.0 | 2023.03.28 |

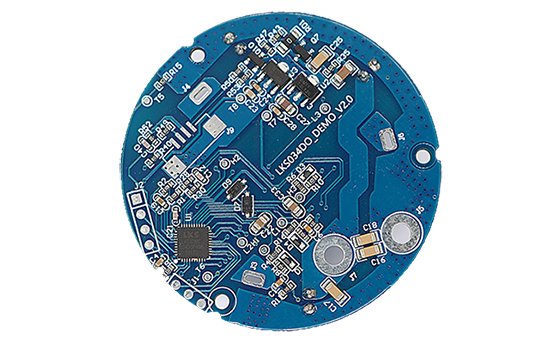

| LKS_EVB_MCU034DO | Single MCU demo board for LKS_EVB_MCU034DO | 2.0 | 2023.03.28 |
| LKS_EVB_MCU035D | Single MCU demo board for LKS_EVB_MCU035D | 2.0 | 2023.03.28 |
| LKS_EVB_MCU037 | Single MCU demo board for LKS_EVB_MCU037 | 2.0 | 2023.03.28 |
| LKS_EVB_MCU037E | Single MCU demo board for LKS32MC037E | 2.0 | 2023.03.28 |
| LKS_EVB_MCU037F | Single MCU demo board for LKS_EVB_MCU037F | 2.0 | 2023.03.28 |
| LKS_EVB_MCU037Q | Single MCU demo board for LKS_EVB_MCU037Q | 2.0 | 2023.03.28 |
| LKS_EVB_MCU038 | Single MCU demo board for LKS_EVB_MCU038 | 2.0 | 2024.03.20 |
| LKS_EVB_MVPOWPRE | Mother board with gate-drivers for single MCU daughter board | 5.0 | 2023.10.18 |
| LKS_EVB_MVPOW3P3N | Mother board for 3P3N MCU daughter board | 2.0 | 2023.03.28 |
| LKS_EVB_MVPOW6N | Mother board for 6N MCU daughter board | 5.0 | 2023.03.28 |
| LKS_EVB_HVPOWPRE | Mother board with HV gate drivers | 2.0 | 2023.03.28 |
Reference
| Download | Description | Version | Update |
|---|---|---|---|
| LKS32MC03x_PeripDemo | LKS32MC03x 外设示例工程Peripheral Demo Projects | 1.6 | 2024.04.19 |
| LKS32MC03x_DevDriver | LKS32MC03x 外设库函数(外设驱动)Device Drivers | 1.21 | 2024.03.28 |
| LKS03x_FOC_OpenSource_HallSense | 基于LKS03x的开源有感FOC工程 | 1.0 | 2023.03.30 |
| LKS03x_FOC_OpenSource_Sensorless | 基于LKS03x的开源无感FOC工程 | 2.0 | 2023.03.30 |
| LKS03x_Introduction | LKS03x介绍培训讲义PPT | 1.2 | 2023.02.14 |
| LKS03x_ClassB_sLib | LKS03x ClassB 功能安全认证软件库 | 1.0 | 2022.12.28 |
Tools
| Download | Description | Version | Update |
|---|
Application Note
| Download | Description | Version | Update |
|---|
