LKS05系列

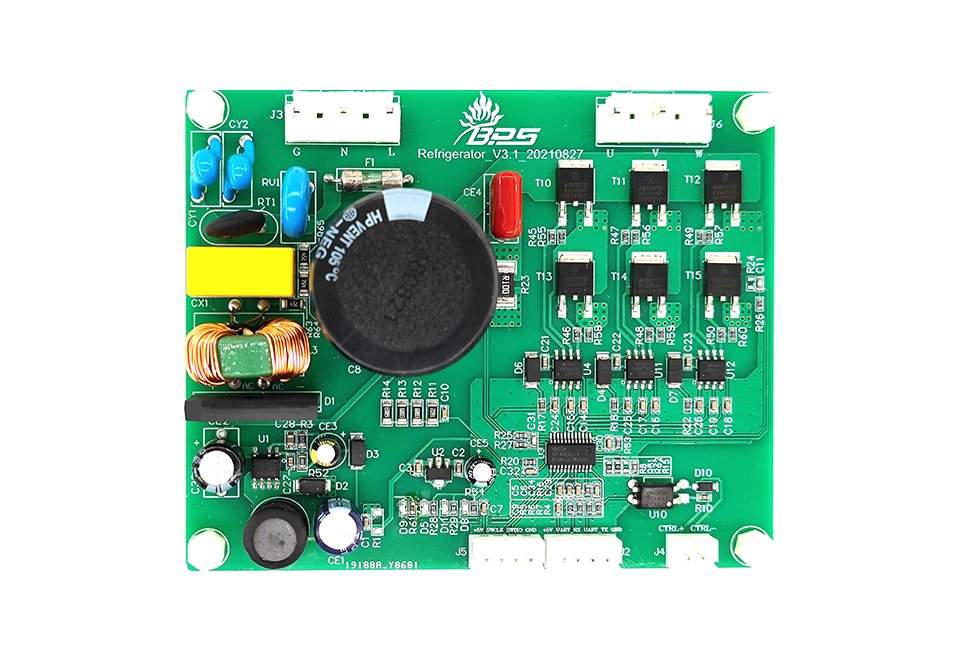

LKS05系列MCU是凌鸥创芯针对电机驱动市场，推出的高性价比电机运动控制系列芯片。集成仪表级全差分可编程增益放大器+差分ADC，不需要电压偏置就可以处理正负信号；集成同步双采样3Msps 12BIT高速ADC，集成全温度范围千分之五电压基准源；集成96MHz 32BIT CPU，三角函数运算、开方运算100ns内完成；工作温度范围-40~105℃，内部RC全温度范围时钟偏差±1%以内。芯片引脚通过6KV人体模型引脚接触放电，通过15KV非触式空气静电放电测试。LKS05系列MCU在提供电机控制应用必须资源的前提下仍具有极佳性价比。
| Device | Freq(MHz) | Flash(kB) | RAM(kB) | ADC Ch. | DAC | Comp | Comp Ch. | OPA | HaLL | SPI | IIC | UART | CAN | QEP | Gate driver | Gate driver current(A) | Gate driver supply(V) | Floating voltage(V) | Others | Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LKS32MC051C6T8 | 96 | 32 | 2.5 | 12 | 12BITx1 | 2 | 8 | 2 | 3-way | 1 | 1 | 2 | TQFP48 | |||||||
| LKS32MC051DC6T8 | 96 | 32 | 2.5 | 11 | 12BITx1 | 2 | 8 | 2 | 3-way | 1 | 1 | 2 | 6N | +1.2/-1.5 | 4.5~20 | 200 | TQFP48 | |||
| LKS32MC052K6Q8 | 96 | 32 | 2.5 | 8 | 12BITx1 | 2 | 6 | 2 | 3-way | 1 | 1 | 2 | QFN32 | |||||||
| LKS32MC054DF6Q8 | 96 | 32 | 2.5 | 9 | 12BITx1 | 2 | 8 | 2 | 3-way | 1 | 1 | 2 | 6N | +1.2/-1.5 | 4.5~20 | 200 | QFN40 | |||
| LKS32MC054DOF6Q8 | 96 | 32 | 2.5 | 9 | 12BITx1 | 2 | 8 | 2 | 3-way | 1 | 1 | 2 | 6N | +1.2/-1.5 | 4.5~20 | 200 | 5vLDO | QFN40 | ||
| LKS32MC055DL6S8 | 96 | 32 | 2.5 | 3 | 12BITx1 | 2 | 4 | 2 | 1-way | 1 | 1 | 2 | 3P3N | +0.05/-0.3 | 7.5~28 | 5vLDO | SOP16L | |||
| LKS32MC055EL6S8 | 96 | 32 | 2.5 | 4 | 12BITx1 | 2 | 6 | 1 | 3-way | 1 | 1 | 2 | 3P3N | +0.05/-0.3 | 7.5~28 | 5vLDO | SOP16L | |||
| LKS32MC057M6S8 | 96 | 32 | 2.5 | 6 | 12BITx1 | 2 | 6 | 2 | 3-way | 1 | 1 | 2 | SSOP24 | |||||||
| LKS32MC057EM6S8 | 96 | 32 | 2.5 | 6 | 12BITx1 | 2 | 6 | 2 | 3-way | 1 | 1 | 2 | 3P3N | +0.05/-0.3 | 7.5~28 | 5vLDO | SSOP24 | |||
| LKS32MC057FM6S8 | 96 | 32 | 2.5 | 6 | 12BITx1 | 2 | 6 | 2 | 3-way | 1 | 1 | 2 | 3P3N | +0.05/-0.3 | 7.5~28 | 5vLDO | SSOP24 |
下载资源
Datasheet
| Download | Description | Version | Update |
|---|---|---|---|
| LKS32MC05x_DS | LKS32MC05x数据手册 | 1.76 | 2023.11.22 |
| LKS32MC05x_3P3N_DS | LKS32MC05x集成3P3N预驱数据手册 | 1.88 | 2023.11.22 |
| LKS32MC05x_6N_DS | LKS32MC05x集成6N预驱数据手册 | 1.69 | 2024.04.16 |
| LKS05x_LKS08x_diff | LKS05x与LKS08x系列异同比较 | 1.1 | 2023.03.29 |
| LKS32MC05x_ER | LKS32MC05x Errata | 1.0 | 2023.05.06 |
User Manual
| Download | Description | Version | Update |
|---|---|---|---|
| LKS32MC05x_UM | LKS32MC05x用户手册 | 1.20 | 2024.01.23 |
Device Pack
| Download | Description | Version | Update |
|---|---|---|---|
| LKS32_Keil4 | LKS32 Keil4 device setup | 1.79 | 2024.01.12 |
| LKS32MC05x_Keil5 | LKS32MC05x Keil5 device files | 1.11 | 2023.12.21 |
Demo Board
| Download | Description | Version | Update |
|---|---|---|---|
| LKS_EVB_MCU051 | Single MCU demo board for LKS32MC051 | 2.0 | 2023.03.28 |
| LKS_EVB_MCU051D | Single MCU demo board for LKS32MC051D | 2.0 | 2023.03.28 |
| LKS_EVB_MCU052 | Single MCU demo board for LKS32MC052 | 1.0 | 2023.03.31 |
| LKS_EVB_MCU054D | Single MCU demo board for LKS32MC054D | 2.0 | 2023.03.28 |
| LKS_EVB_MCU054DO | Single MCU demo board for LKS32MC054DO | 2.0 | 2023.03.28 |
| LKS_EVB_MCU055D | Single MCU demo board for LKS32MC055D | 1.0 | 2023.03.28 |
| LKS_EVB_MCU055E | Single MCU demo board for LKS32MC055E | 1.0 | 2023.03.28 |
| LKS_EVB_MCU057 | Single MCU demo board for LKS32MC057 | 1.0 | 2023.03.28 |
| LKS_EVB_MCU057E | Single MCU demo board for LKS32MC057E | 1.0 | 2023.03.28 |
| LKS_EVB_MCU057F | Single MCU demo board for LKS32MC057F | 1.0 | 2023.03.28 |
| LKS_EVB_MVPOWPRE | Mother board with gate-drivers for single MCU daughter board | 5.0 | 2023.10.18 |
| LKS_EVB_MVPOW3P3N | Mother board for 3P3N MCU daughter board | 2.0 | 2023.03.28 |
| LKS_EVB_MVPOW6N | Mother board for 6N MCU daughter board | 5.0 | 2023.03.28 |
| LKS_EVB_HVPOWPRE | Mother board with HV gate drivers | 2.0 | 2023.03.28 |
Reference
| Download | Description | Version | Update |
|---|---|---|---|
| LKS32MC05x_DevDriver | LKS32MC05x 外设库函数(外设驱动)Device Drivers | 1.2 | 2024.03.30 |
| LKS32MC05x_PeripDemo | LKS32MC05x 外设示例工程Peripheral Demo Projects | 1.8 | 2024.01.15 |
| LKS05x_Introduction | LKS05x介绍培训讲义PPT | 1.7 | 2023.02.14 |
| LKS05x_ClassB_sLib | LKS05x ClassB 功能安全认证软件库 | 1.0 | 2022.12.28 |
Tools
| Download | Description | Version | Update |
|---|
Application Note
| Download | Description | Version | Update |
|---|
