Gate Driver

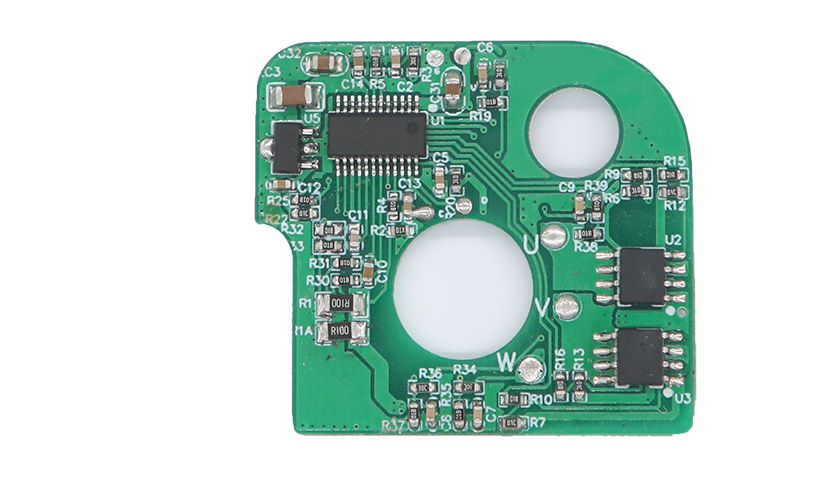

Linko has a number of very competitive MOSFET and IGBT grid driver chips. It integrates logic signal input processing circuit, dead time control circuit, blocking circuit, level displacement circuit, pulse filter circuit and output driver circuit, and is dedicated to drive circuit in brushless controller. It is widely used in electric bicycle, home appliances, power tools, industrial control and other fields.
| Device | Package Type | Output Current | Floating Voltage/V | Control Logic | UVLO | Turn-on Delay/ns | Turn-off Delay/ns | Dead Time/ns | Working Temperature/°C | Power Supply/V | Input Level | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| IO+(A) | IO-(A) | |||||||||||
| LKS570 | SOP8 | 1.2 | 1.5 | 250(max) | HIN & LIN* | 7V | 100 | 100 | 100 | -40~150 | 8~20 | 3.3V/5V/15V |
| LKS563 | SOP20 | 1.2 | 1.5 | 300(max) | HIN & LIN | 4.9V | 600 | 270 | 200 | -40~150 | 10~25 | 3.3V/5V/15V |
| LKS523 | SOP8 | 0.8 | 1.2 | 600(max) | HIN & LIN | 7.6V | 250 | 160 | 100 | -40~150 | 10~20 | 3.3V/5V/15V |
| LKS520 | SOP8 | 0.45 | 1 | 600(max) | HIN & LIN* | 7.6V | 270 | 180 | 100 | -40~105 | 10~20 | 3.3V/5V/15V |
| LKS513 | ESOP16 | 0.05 | 0.3 | 40 | 3P3N | 6V | 80 | 30 | 100 | -40~105 | 6~40 | 3.3V/5V/15V |
